GL300E/GL500E/GL800E Portable Core Drilling Rig Technical Specification

Description:

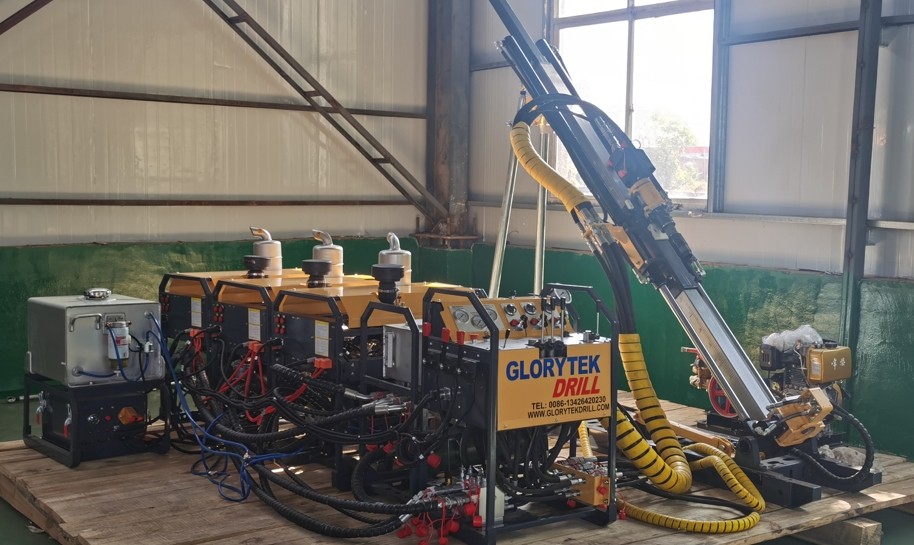

GL300E/GL500E/GL800E series are representative models of portable core drilling rigs, suitable for drilling shallow and medium-deep holes.

The main structure of the lightweight core drilling rig is made of high-strength aluminum alloy material, which greatly reduces the weight of the machine while ensuring the strength and toughness. The maximum module weight is only 180Kg, which is convenient for manual handling on site.

The portable core drilling rig has a compact structure and can complete equipment layout within a working plane of 3m*3m (4m*4m). After optimized design, it is easy to disassemble and assemble. When traffic conditions are limited, the drilling rig can be manually carried along the sidewalk or path, which has outstanding advantages in complex terrain construction.

The design of the portable core drilling rig embodies the concept of environmental protection, which is convenient for restoring the environment after construction, and has little impact on the natural environment.

Portable core drilling rigs have good performance in various working conditions, and have been recognized by users for their excellent equipment quality performance, professional technical services, and excellent performance-price ratio.






Features:
1. The portable drilling rig adopts the power system integrated control technology, and realizes the control of all engines on the console;
2. The clamp has a pressure loss protection function, which is safe, reliable, and responds quickly to prevent accidental detachment.
3. The unique adjustable sliding gap function of the power head keeps the close contact between the mast rail surface and the carriage, eliminates drilling vibration, and ensures drilling coaxiality.
4. It adopts a portable engine with high power reserve. By optimizing the system configuration, it can fully improve the adaptability to plateau work.
5. Combined masts, which can be automatically retracted, compact in structure, stable and reliable.
6. The proprietary portable drilling rig mud treatment system adopts customized high-pressure mud pump, which is light in weight, small in pulse and easy to operate.
7. Industry high-end manufacturing process, excellent quality.


Specification:
