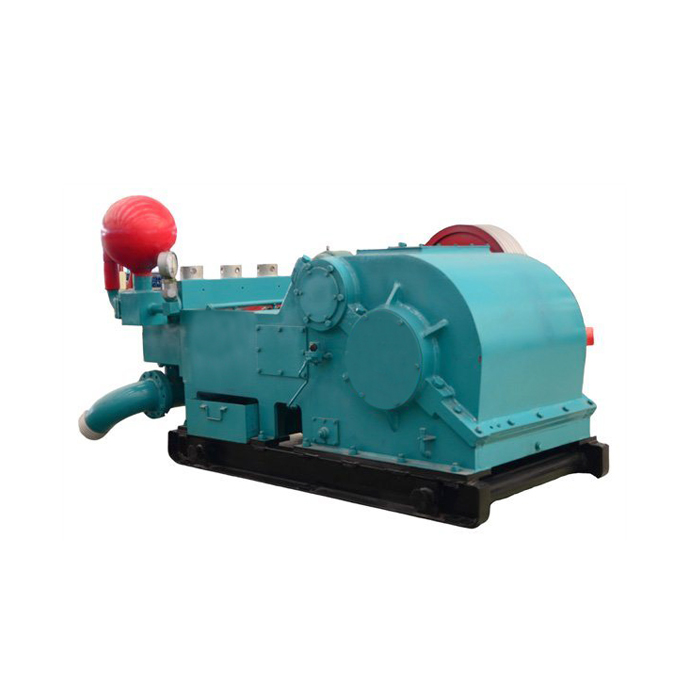

3NB-130 Mud Pump
| Specification | ||||||
| Model | 3NB-130 | |||||
| Piston diameter (mm) | 100 | 110 | 120 | 130 | 140 | |
| Displacement (L/S) | 8.34 | 10.3 | 12.2 | 14.3 | 16.6 | |
| Pressure (Mpa) | 10 | 8 | 7 | 6 | 5 | |
| Input speed (r/min) | 565 | |||||
| Pump speed (spm) | 135 | |||||
| Suction pump dia. | Φ152 | |||||
| Discharge pump dia. | Φ65 | |||||
| Piston Stroke (mm) | 160 | |||||
| Input Power | Diesel Engine | 130HP | ||||
| Electric Motor | Y315M-6 90KW | |||||
| Dimension (mm) | 2260*1380*1260 | |||||
| Weight (kg) | 3174 | |||||
