Mud Pump

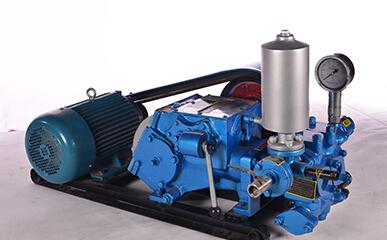

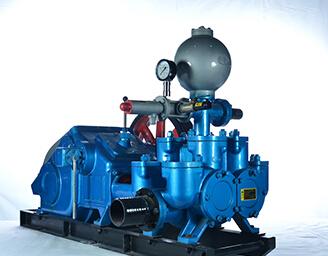

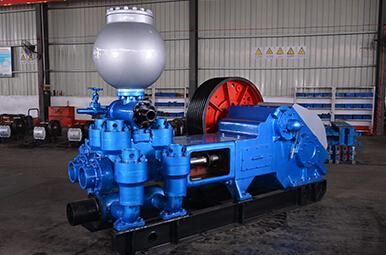

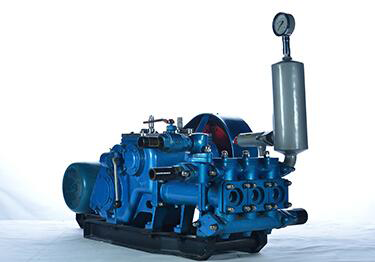

BW Type Mud Pump



BW Type Mud Pump



\



\



\



\



Type: BW90/3, BW100/5, BW120/3, BW150/1.5, BW150/3.5, BW160/10, BW200/4, BW2

40/10, BW250, BW320, BW150/13, BW400/10, BW450/5, BW500/10, BW600/10, BW750,
BW850/2, BW850/5, BW1200/7 Etc.
Application: The pump is mainly used for supplying flushing fluid to the borehole in geologi
cal drilling process. It can match with big diameter rigs in different drilling depth and impro
ve drilling efficiency and borehole quality.
Structure Features
1.Horizontal double cylinder & three cylinder,
single-acting&double-acting reciprocating piston pump.
2.Simple and compact structure, light weight, long service life of wearing parts, easy
operation.

3.Extending service life of pump greatly by using bi-metal liner.

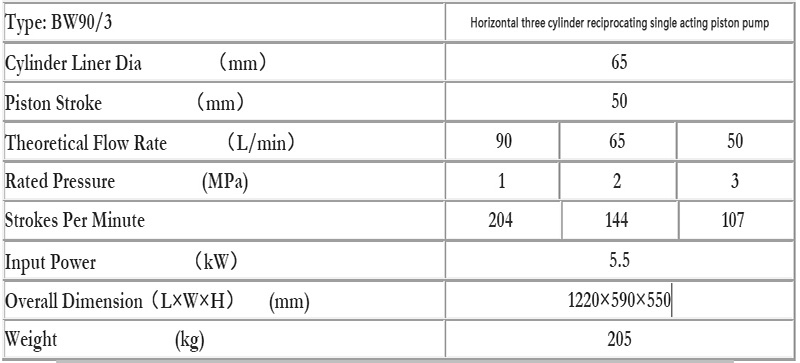

Type: BW90/3

\

\

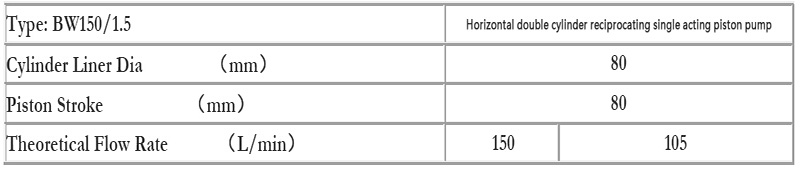

Type: BW150/1.5

\

\

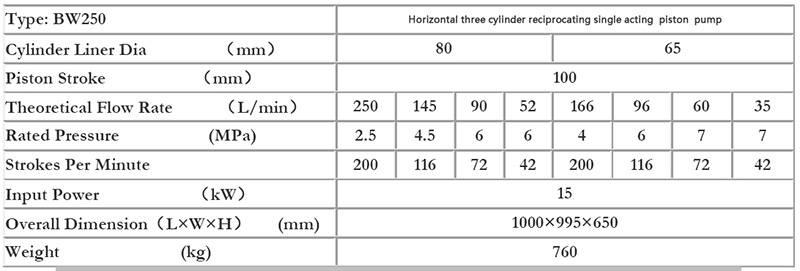

Type: BW250

\

\

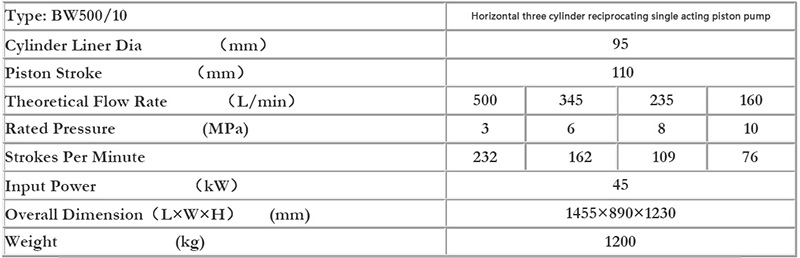

Type: BW500/10

\

\

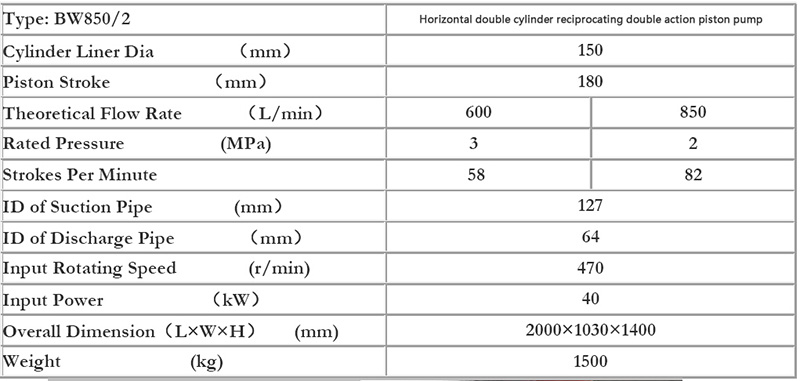

Type: BW850/2

\

\

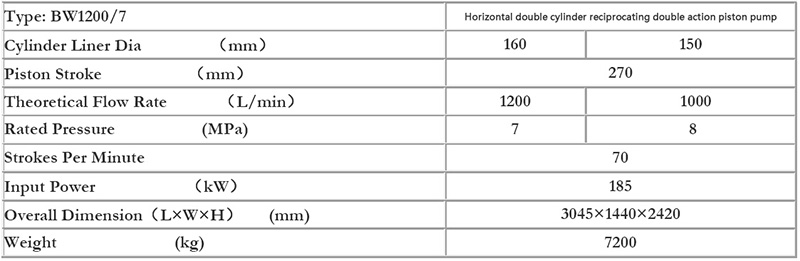

Type: BW1200/7

\
\
