Full Hydraulic Core Drill Rig

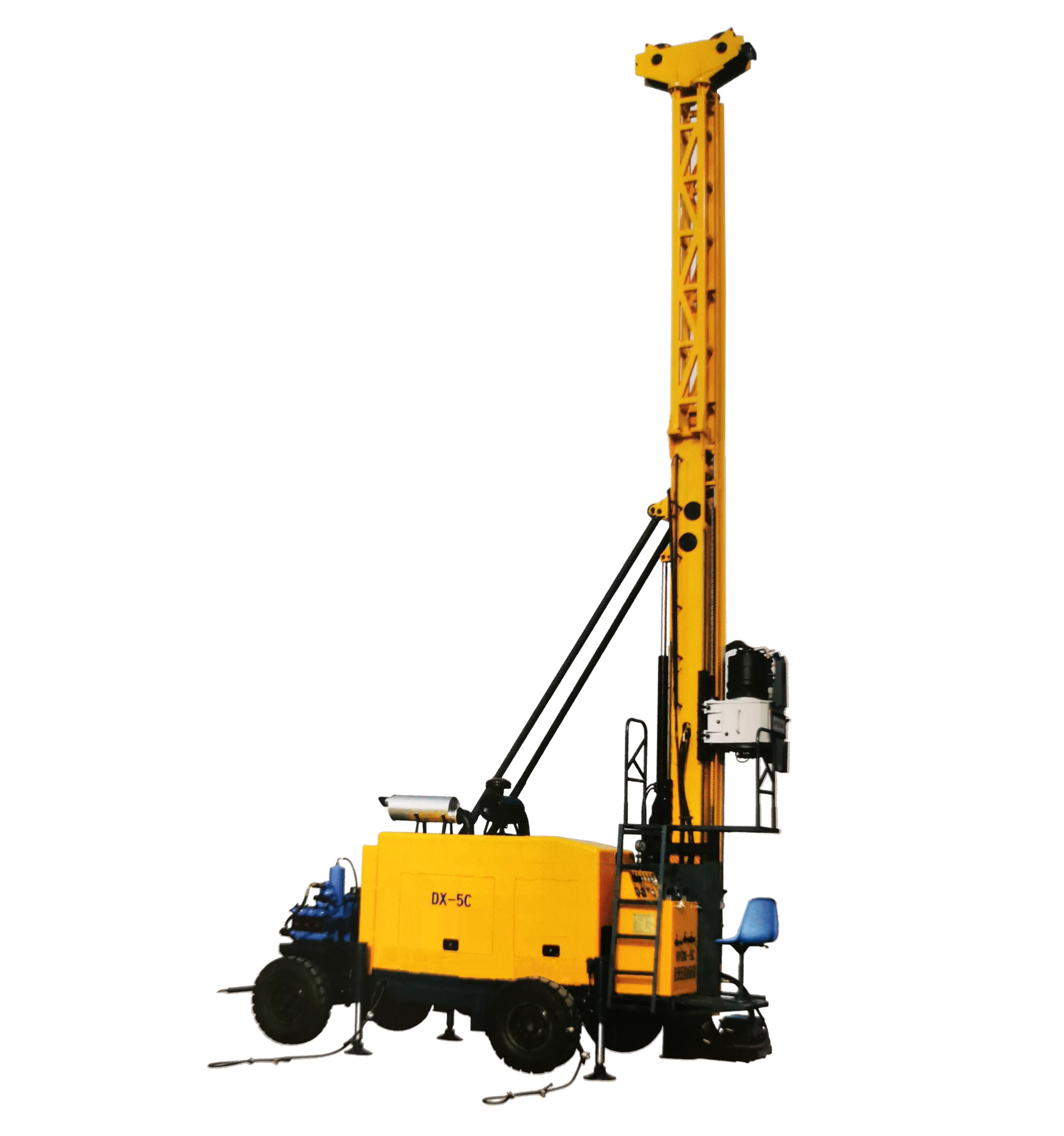

DX- 5C Full Hydraulic Core Drilling Rig

DX- 5C Full Hydraulic Core Drilling Rig


Main hydraulic pump, valve and motor are all adopted from famous international brands. Batholith is tyre-drawing (with turning device) or steel track loptional),with hydraulic support device, mast adopted hydraulic powered lft/down, which can be folded to store and transport, with touchdown function, hydraulic system adopted sensitive load control, with high-position operation platform and orifice operation platform. Drill head feeding adopts double -speed driving device for the chain of the oil tank, long-range feeding system, single-motor driving, with 2 grades gear-box and hydraulic operated stepless shift gears. Equipped with  high supporter and low guider devices, orifice with hydraulic holder.

  Model DX-5C full hydraulic
Diesel Engine Model cummins 6CTA8.3-C195
Power 145kW
Speed 1900rpm
Drilling Capacity BQ 1500m
NQ 1300m
HQ 1000m
PQ 680m
Rotator Capacity RPM Two Shifts/ Stepless 0-1145rpm
Max.Torque 4650N·m
Hold Diameter 121mm
Max.Lifting Capacity of Spindle 150kN
Max.Feeding Power 75kN
Capacity of Main Hoist Hoisting Force(singlee wire) 77kN
Steel Wire Diameter 18mm
Steel Wire Length 60m
Capacity of Steel Wire Hoist Hoisting Force(singlee wire) 12kN (Bare drum)
Steel Wire Diameter 6mm
Steel Wire Length 1500m
Mast Mast Height 12m
Mast Adjusting Angle 0°-90°
Drilling Angle 45°-90°
Feeding Stroke 3800mm
Slippage Stroke 1100mm
Other Weight 10000kg
Dimensions(L×W×H) 6250×2200×2730mm
Transport Way Tyre
Mud Pump Model BW250
Foot damp Clamping Scope 55.5-117.5 mm(standard hole size Φ154mm)
