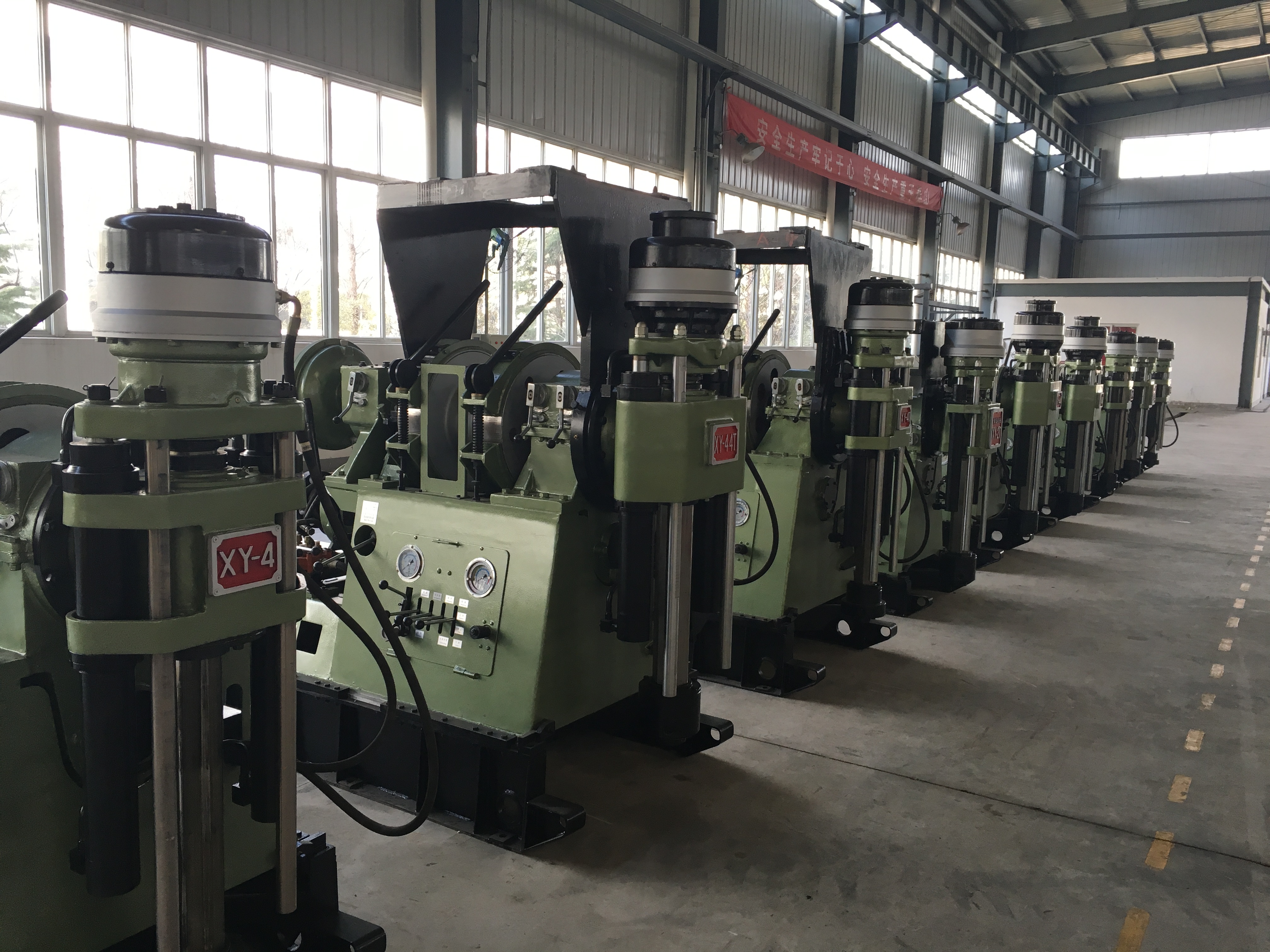

XY-42A Core Drilling Rig
Applications
XY-42A is a kind of core drill driven with tungalloy-carbide-tipped bit and diamond-bit, small-diameter. It is mainly suitable for exploration of metal or non-metal or non-metal solid mineral ore bed. It is widely applied in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.
Characteristics
With eight rotary speeds and reasonable ranges of speed (Please see the list of spindle speed). Max, torque 3.5 KN·m (2580 lbf·ft) (while with lower rotary speed of spindle).
With large spindle I.D. 93mm (3.66 inch), the rig is driven by hydraulic double cylinders with much longer stroke up to 600mm (23.62 inch). The rig is suitable for various drilling technologies to improve drilling efficiency.
In two reverse speeds, it is suitable to deal with faulties.
With the features of reasonable power and lower oil temperature, it adopted simplex hydraulic gear pump for oil supplying.
Double-action hydraulic chuck in powerful clamping force.
In light weight, easy disassembling (into nine parts), and convenient for maintenance and repair, due to the advantages of compact structure and reasonable layout.
It steadies in the high drilling speed because of its smooth movement and low centre of gravity.
Fitted with measuring scale for your good knowledge of the drilling condition at the bottom of the hole; every handle can be operated nimbly and reliably.
Specifications
| Drilling depth | Core drilling | 500-1100m | Max. lifting capacity of spindle | 80 kN | |
| Foundation stake drilling | 100m | ||||
| Hydrological drilling | 150m | ||||
| Rotation angle of spindle | 0-360° | Max. pressuring force of spindle | 60 kN | ||
| Spindle speed | Positive | 82, 151, 215, 313, 251, 463, 661, 961 rpm | Dimensions (LxWxH) | 2730x1100x1860 mm | |
| Negative | 67,205 rpm | ||||
| Max. rotary torque of spindle | 3200 N·m | Steel Wire Diameter | 16 mm | ||
| Spindle stroke | 600 mm | Content of Winding Drum | 90 m | ||
| I.D of spindle | 93 mm | Max. hoisting force | 30 kN | ||
| Power | Y200L-4 electric motor 30kW/1470 rpm | Weight (without power unit) | 2000kg | ||
| R4105G53 diesel engine 42kW/1500 rpm | |||||
