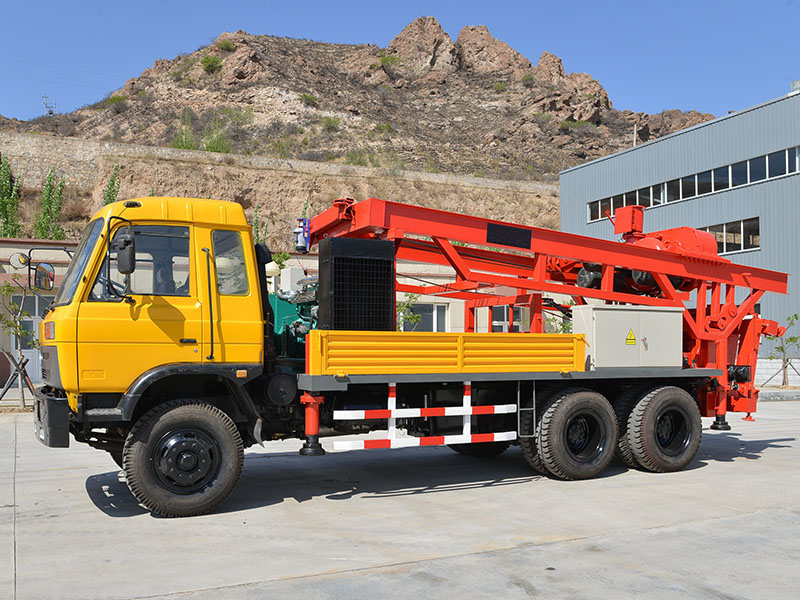

GL-2000 Reverse Circulation Truck Mounted Drill Rig



GL-2000 Reverse Circulation Truck Mounted Drill Rig


\


Main Specification
Hole Diameter:( mm 450-2200
Hole Depth:(m) 50-300
Drill Rod Length (m) 2
Drill Rod Diameter(mm) 219
Drilling Technology Direct & Reverse Circulation
Mast Height(m) 7.1
Drill Head Lifting Spped(m/s) 0.065
Drill Head Spin Speed(R/min) High Spead 22, Low Speed 11
Two Speed Motor(kW) 11   17
Drill Head Lifting ForcekW) 35.75
Drill Hoist Lifting Speed(m/s) 0.39
Dimensions(mm) Working Conditions:9600*3300*6910
Transport Status:9600*2470*3350
Supporting Form Hydraulic Unit
Mast Up-Down Hydraulic Unit
Rig Mass(Kg) 13000
Chassis 2x4
Power Unit Electrical Motor
Mud Pump Rotary Head Upper Suction pump
Power(kW) 30
Flow(m3/h) 400
Lift head(M) 1.5
Generator(kW) 120
