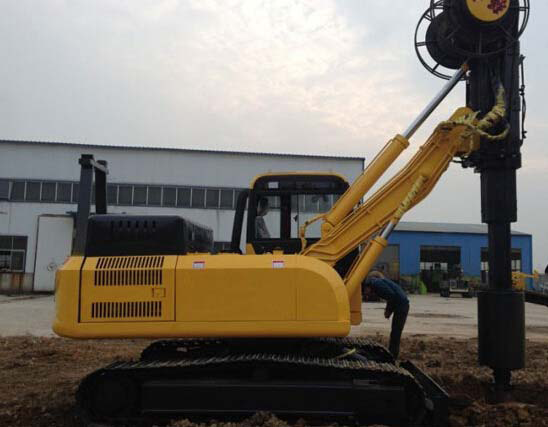

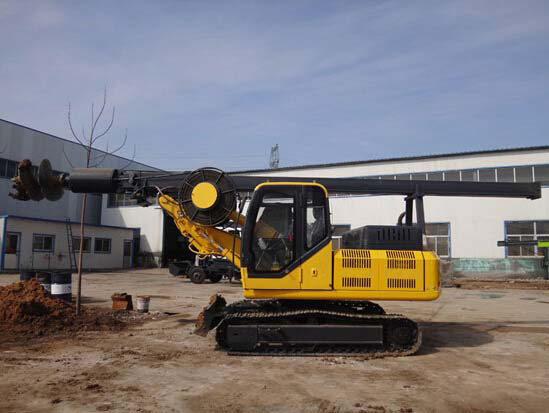

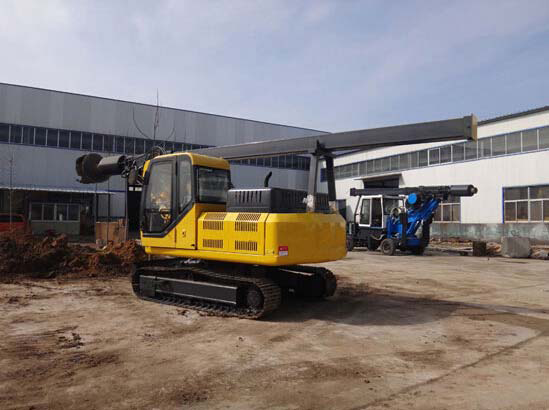

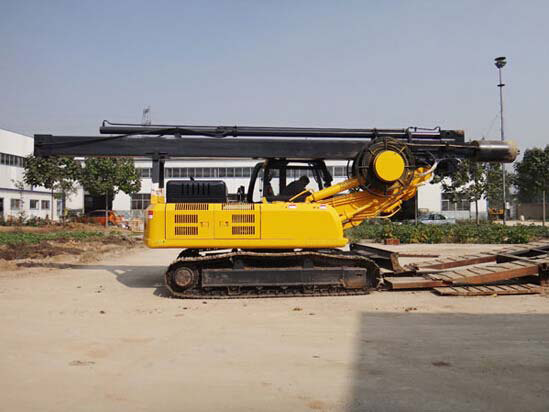

LQ series auger drill rig
Technical Specification:
|
Model |
LQ-13 |
LQ-15 |
LQ-20 |
||
|
Working mode |
Pressure station mode |
Pressure station mode |
Pressure station mode |
||
|
Drill diameter |
mm |
500-1500 |
|||
|
Drill depth |
m |
13 |
15 |
20 |
|
|
Dimension |
m |
7.00*2.2*2.95 |
7.50*2.2*2.95 |
8.20*2.2*2.95 |
|
|
Weight |
t |
11 |
13 |
16 |
|
|
Track board width |
mm |
400 |
|||
|
Engine |
Model |
|
East China Weifang 6:05 |
||
|
Power |
kw |
110 |
|||
|
Speed |
t/min |
2200 |
|||
|
Power head torque |
kn.m |
17000-22000 |
|||
|
Power head speed |
t/min |
30-50 |
|||
|
Maximum lifting force |
kn |
150 |
|||
|
Maximum stroke |
m |
11-22 |
|||
|
Wire rope diameter |
mm |
16 |
|||
|
Torsion angle |
° |
360 |
|||
|
Walking speed |
km/n |
2-5 |
|||
|
Maximum climb gradient |
° |
25 |
|||
|
Optional |
1.Air Conditioner |
||||
|
2.Electric machinery(6G, 30kw) |
|||||
|
3.Double pump(Flow 40/80) |
|||||
|
4.Double dynamic model |
|||||
