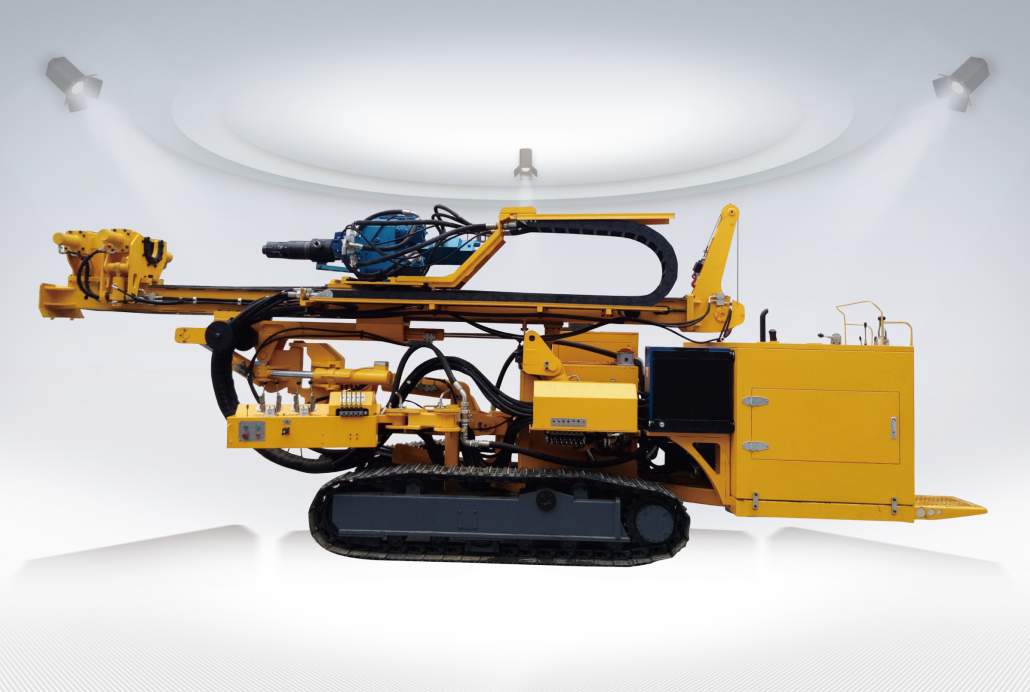

D-150 Anchor Drilling Rig
Main Features:
The lately developed D-150 drill rig is electric powered lightweight anchor drill rig used for diverse drilling techniques for anchor drilling projects, such as auger drilling, single pipe drilling, dual pipe drilling and self-drill anchor drilling. Electric powered D-150 drill rig at drilling operation makes it more energy saving and environment friendly. With powerful hydraulic hammer equipped on the top head of the drill rig, it is applicable to diverse difficult drilling strata with higher drilling speed. For facilitate movement of the drill rig when there is inconvenient for connecting electric power, the small diesel engine is mounted on the drill rig, which is quite useful for locating itself to position.
Performance parameters:
Model
D-150
Power parameter
Power type
Electric powered
Max. power output （KW）
110
Mode of operation
Rotary/Percussive
Electric system (V)
24
Fuel tank capacity
(L)
50
1st circuit
operating pressure（Mpa）
0-24
2nd circuit
operating pressure（Mpa）
0-24
3th circuit
operating pressure（Mpa）
0-20
Hydr. oil tank
capacity (L)
450
Feed stroke（mm）
3500
Feed force（KN）
35
Retraction force（KN）
65
Feed
rate (m/min)
Low
0-22
High
0-61
Retraction
rate (m/min)
Low
0-11
High
0-31
Percussion frequency (Times/min)
0-1150
Max. torque (N·m)
12500
Rotating (r/min)
0-34 0-48
0-55 0-67
0-78 0-95
0-100 0-155
Transport dimensions (L*W*H)（mm）
6700*2000*2600
Weight（Kg）
9000
Note: The
positioning movement of D-150 drill rig can be powered either by diesel
engine or electric motor.
